PD Series
Charging Cabinet

Charge management of your device

TA Series 买点1
TA Series 买点2
TA Series 买点3
TA Series 买点4
TA Series 产品参数

Efficient &
Safe PD Series

The PD series features a USB-C interface with a helpful charging indicator. Its independent circuit design and robust protections—including short-circuit and over-voltage—ensure maximum safety for every port in the cabinet.

Charging

fast charging

Charging complete / Standby

Full-Speed Charging Across All Ports

Choose from 20W, 30W, 45W, or 65W specifications. Our advanced architecture ensures every port delivers its full rated output simultaneously, even when the cabinet is at full capacity. No power sharing, no speed drops.

Make every use clean and hygienic

The UV lamp disinfects each mobile phone, 30 seconds eliminates 99.99% of bacteria, avoids cross infection, and gives users clean and hygienic equipment.

Timing function

Set your charging time and disinfection time to protect the health of your device battery and prevent overcharging; uv one-click disinfection for 5 minutes;

PD Series

PD Max Series

It can also be devices storage locker

Flexible partitions can be disassembled according to requirements,allowing for the placement of devices of different sizes and appearances,greatly enhancing product compatibility;

Comparison

Specifically designed for everyday mobile devices, our 20W and 30W tiers feature a standard-sized cabinet footprint to accommodate smartphones and tablets. Choose these specifications for an efficient, space-saving solution that delivers reliable power to your fleet of mobile electronics.

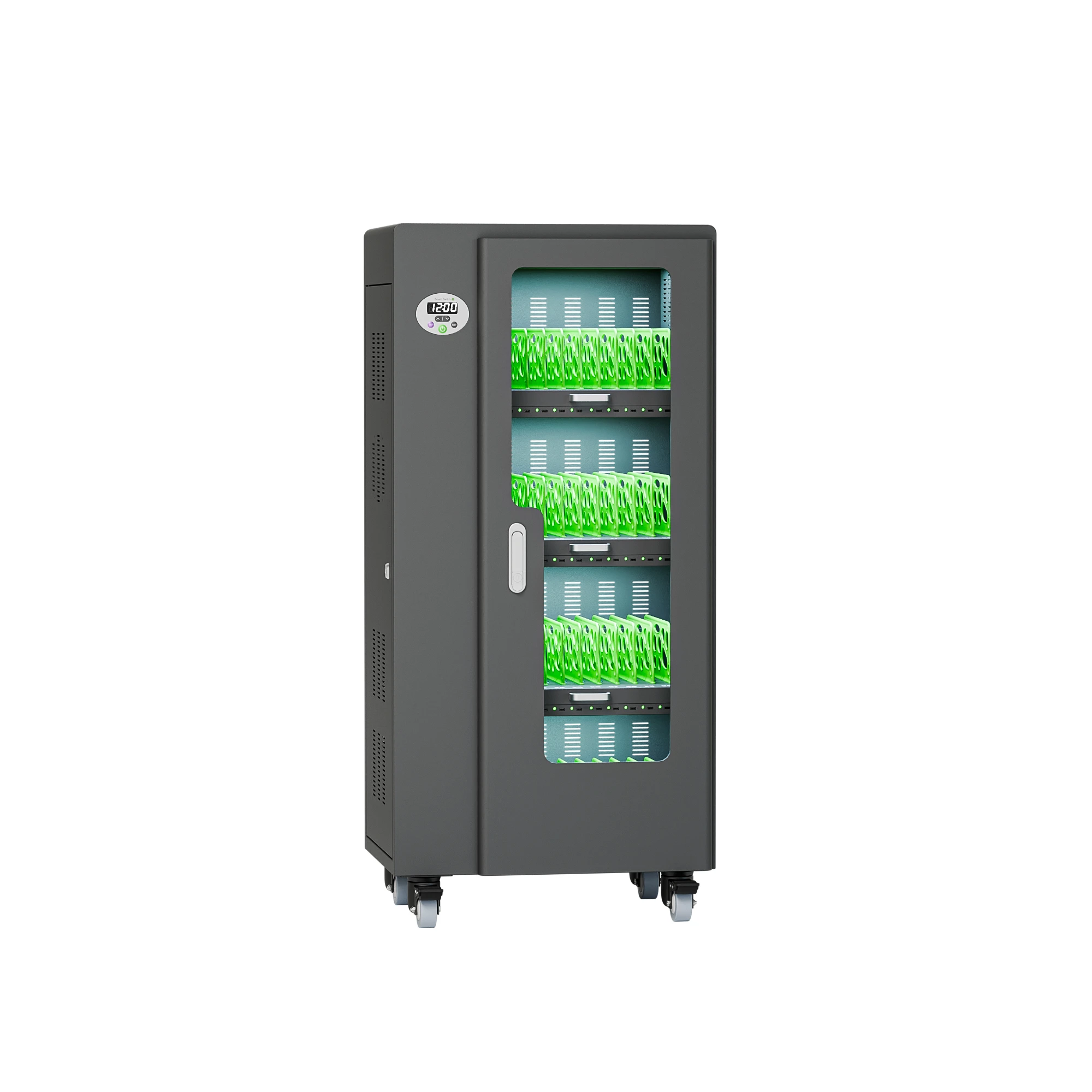

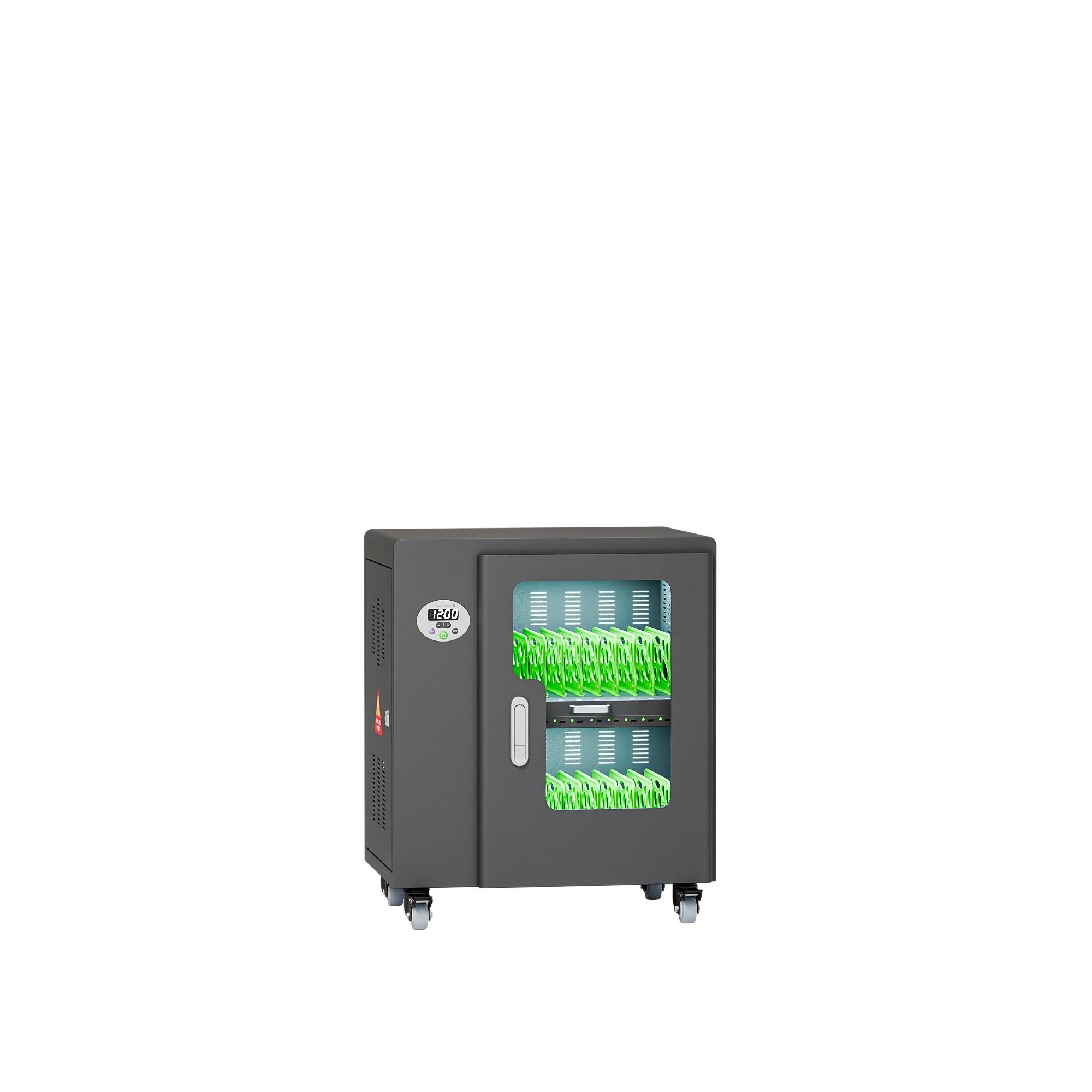

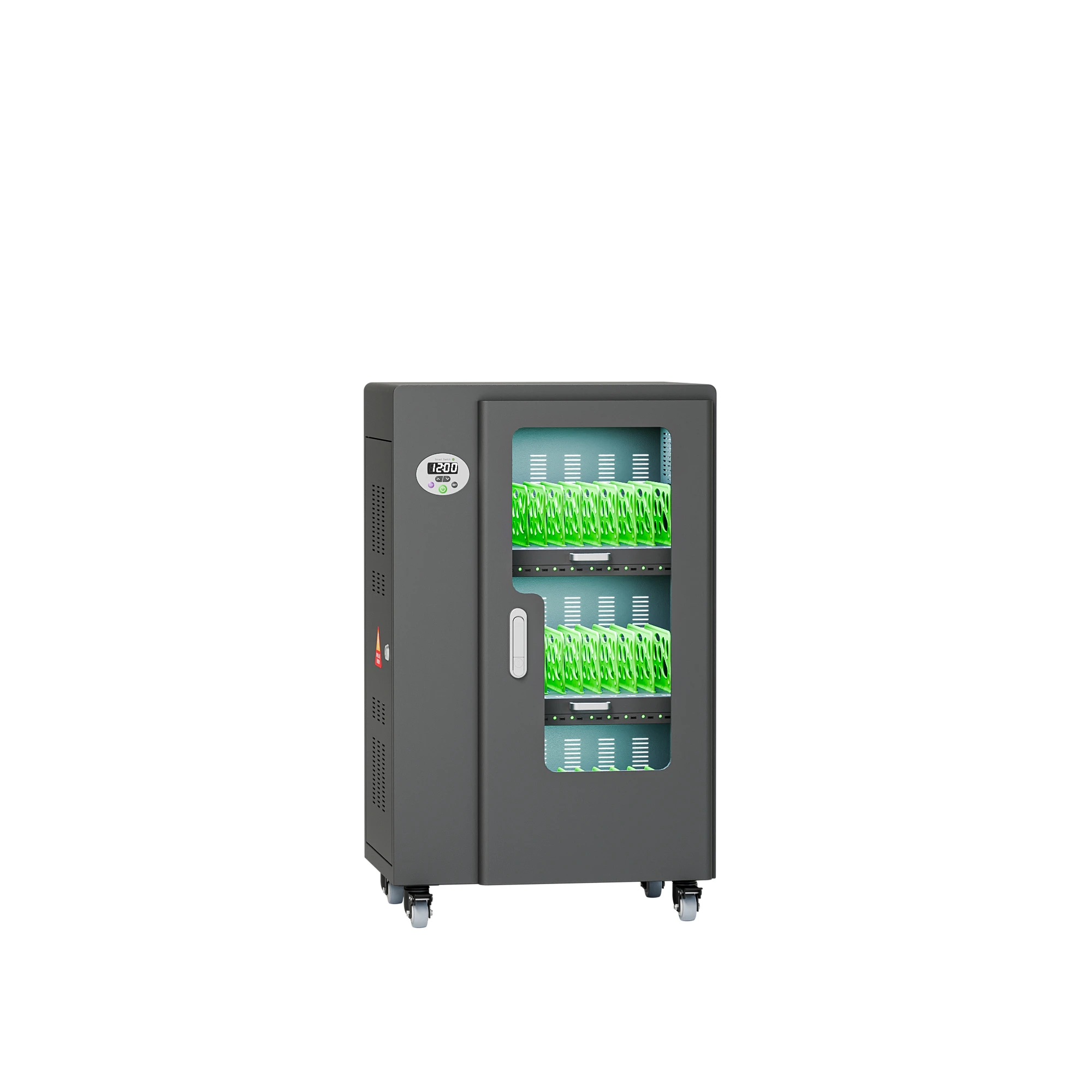

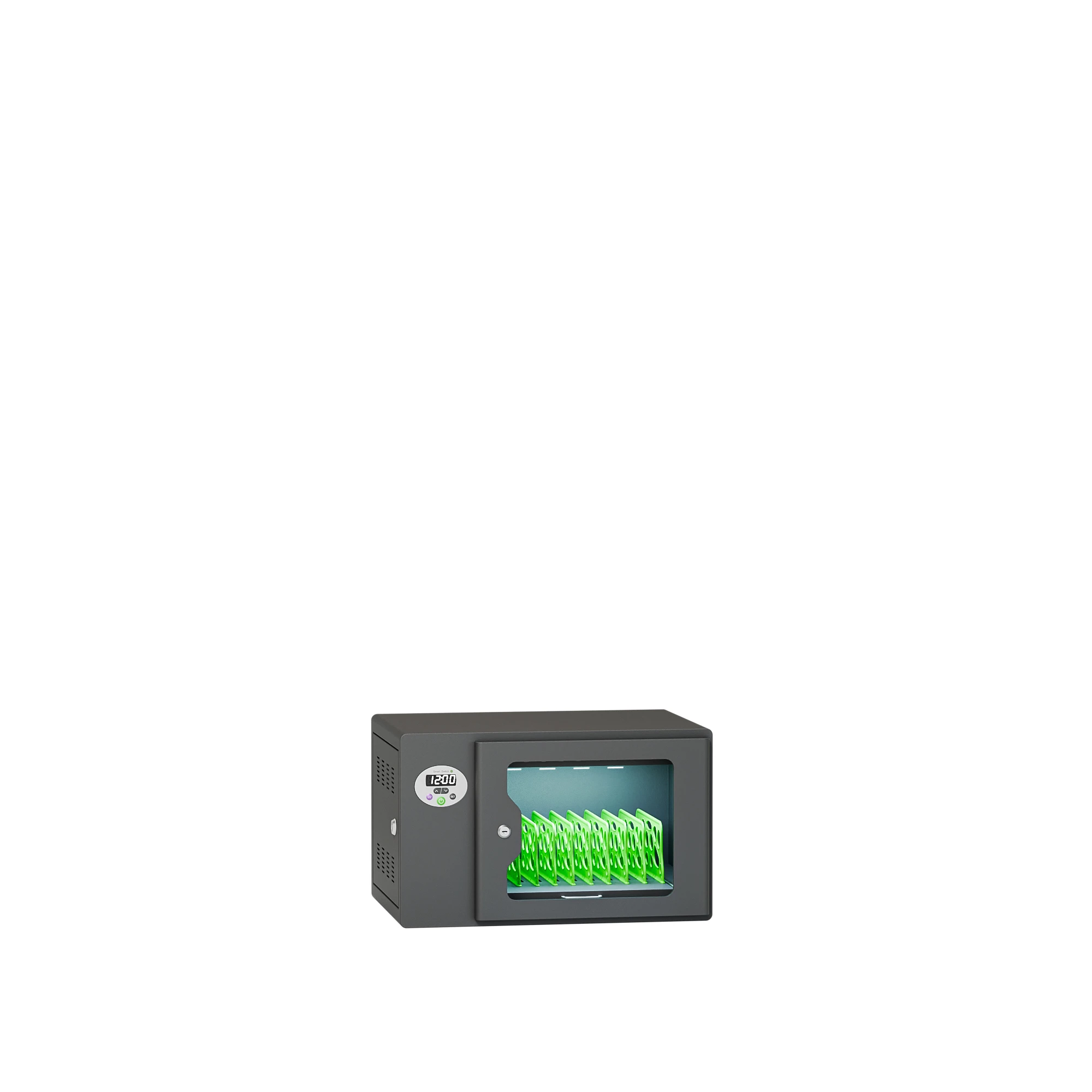

QP-R10PD QP-R20PD QP-R30PD QP-R40PD
Device capacity 10 20 30 40
Layout 1*10 2*10 3*10 4*10
Port Type-C Type-C Type-C Type-C
Input 220V/110V 220V/110V 220V/110V 220V/110V
Output 20W/30W 20W/30W 20W/30W 20W/30W
Max power 400W/600W 600W/1200W 800W/1800W 1000 W/2400W
slot size 310*27.5*207mm 310*27.5*207mm 310*27.5*207mm 310*27.5*207mm
Product size 540*390*330mm 556*400*665mm 556*400*920mm 556*400*1195mm
shipping size 610*470*410mm 630*470*735mm 630*470*990mm 630*470*1260mm
N.W. 15kg 31kg 44kg 52kg
G.W. 19kg 37kg 52kg 60kg
Wheel size / 2" 2" 2.5"

Specifically designed for high-demand devices, our 45W and 65W tiers feature expanded internal bays to accommodate standard-sized laptops and large tablets. Choose these specifications for professional-grade power and the space required for your most powerful hardware.

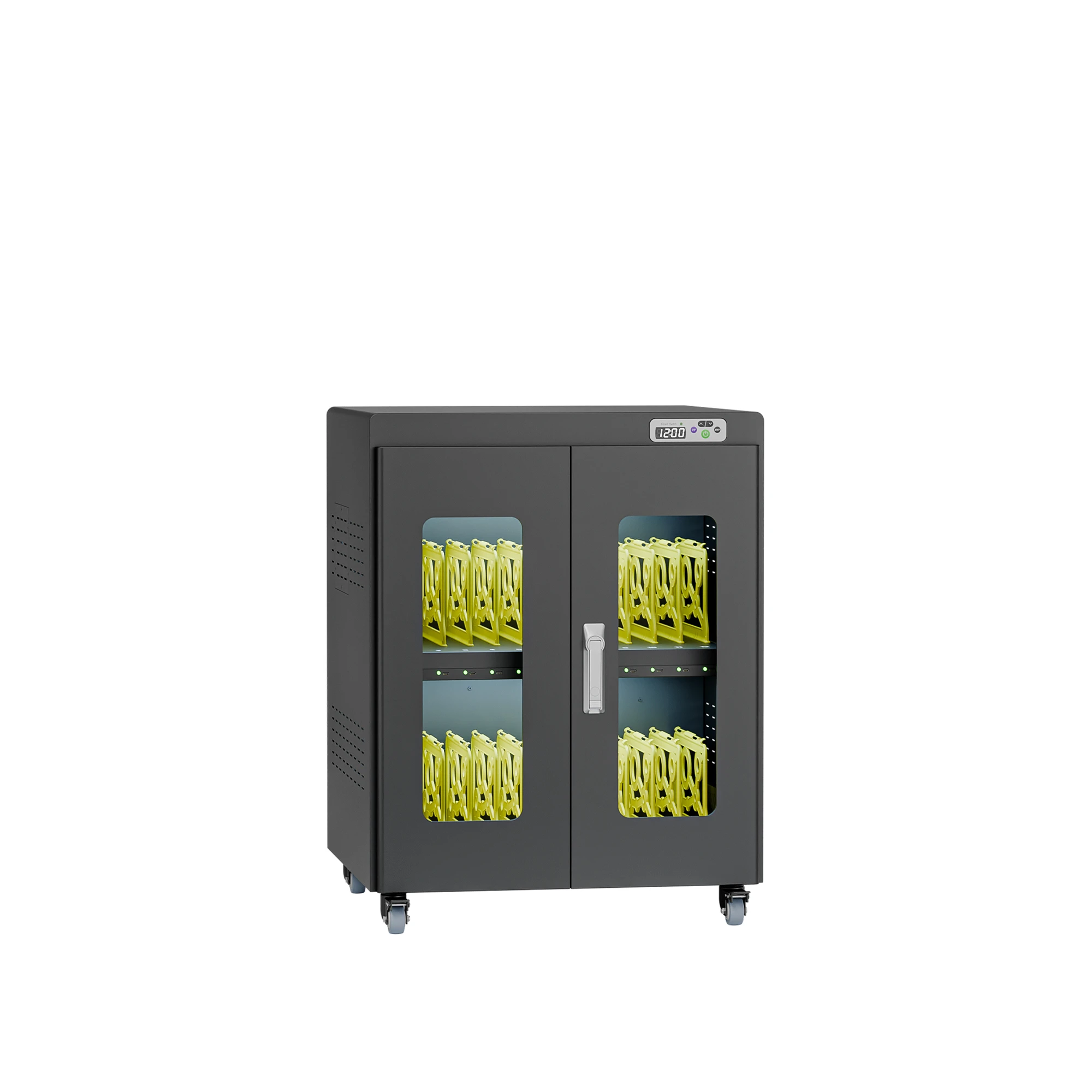

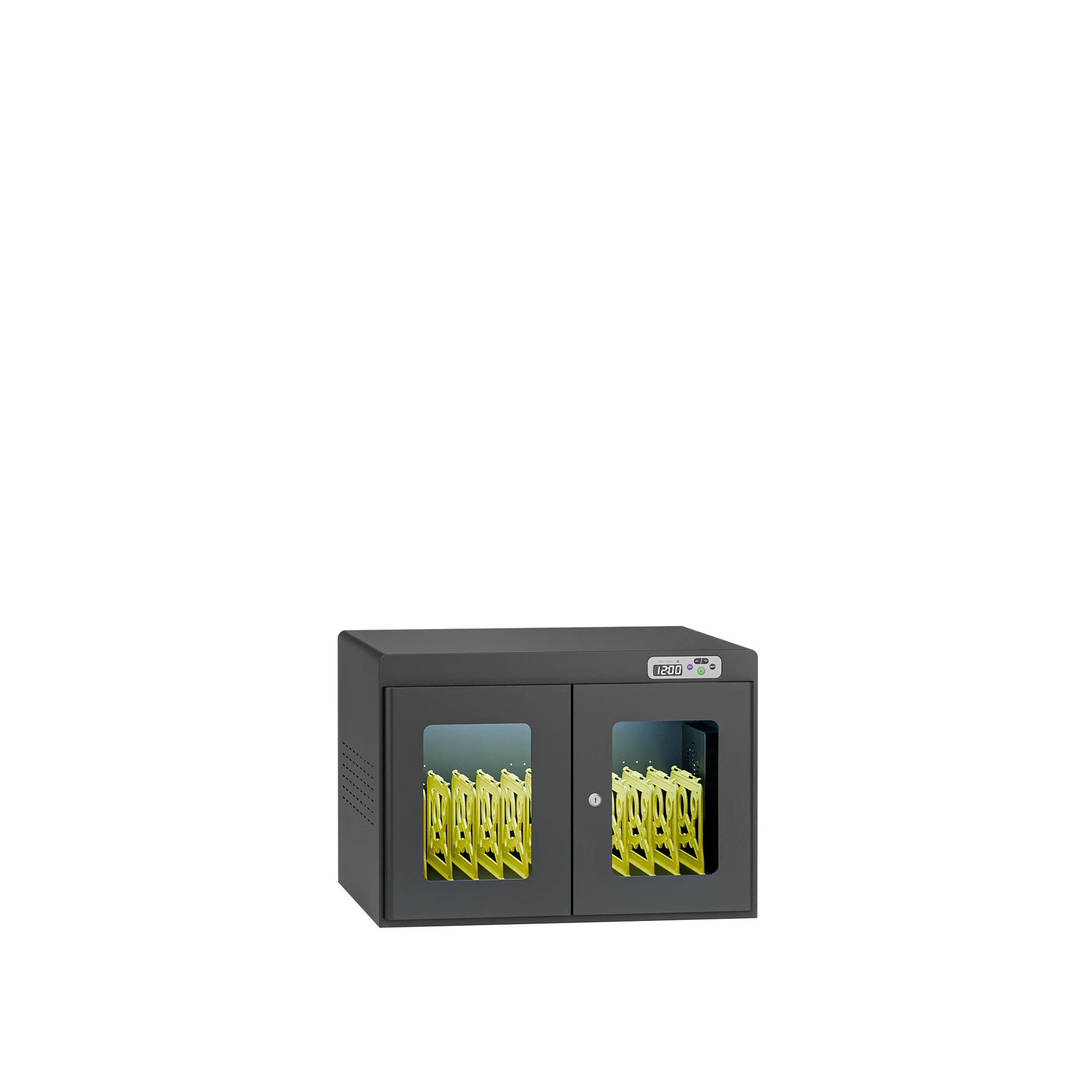

QP-R12PD-Max QP-R24PD-Max QP-R30PD-Max
Device capacity 12 24 30
Layout 1*12 2*12 3*10
Port Type-C Type-C Type-C
Input 220V/110V 220V/110V 220V/110V
Output 45W/65W 45W/65W 20W/30W
Max power 600W/800W 1200W/2400W 800W/1800W
slot size 400*35*305mm 400*35*289mm 310*27.5*207mm
Product size 665*600*470mm 665*600*865mm 556*400*920mm
shipping size 740*680*530mm 740*680*940mm 630*470*990mm
N.W. 37kg 56kg 44kg
G.W. 45kg 66kg 52kg
Wheel size / 2" 2"
