6-grid Electronic Lock
Brief Description
This is a 6-grid touch electronic password lock with a 1–6 numeric touch panel. It supports dual user and management passwords with a customizable length of 4–15 digits. Powered by a CR2032 coin cell battery, it features low-battery indication and a USB emergency key port. Simple to operate and secure, it is widely used for cabinets, drawers and small storage spaces.
Product Details
Detailed Description
Structure: 1–6 numeric touch panel + OK button; buzzer, status light, low-battery light; CR2032 battery compartment; USB key port (no charging). Unlock: Default user password 1234 + OK; management password 4321 + OK. Long beep & light on means success; rotate within 3 seconds. Three short beeps mean wrong password. Password Change: Enter current password + OK → long press OK 2s → enter new password + OK. Password length 4–15 digits; user and management passwords cannot be the same.Product Specification
- Panel: 6-digit touch (1–6) + OK button
- Default Passwords: User 1234, Management 4321
- Password Length: 4–15 digits
- Power Supply: CR2032 coin cell battery

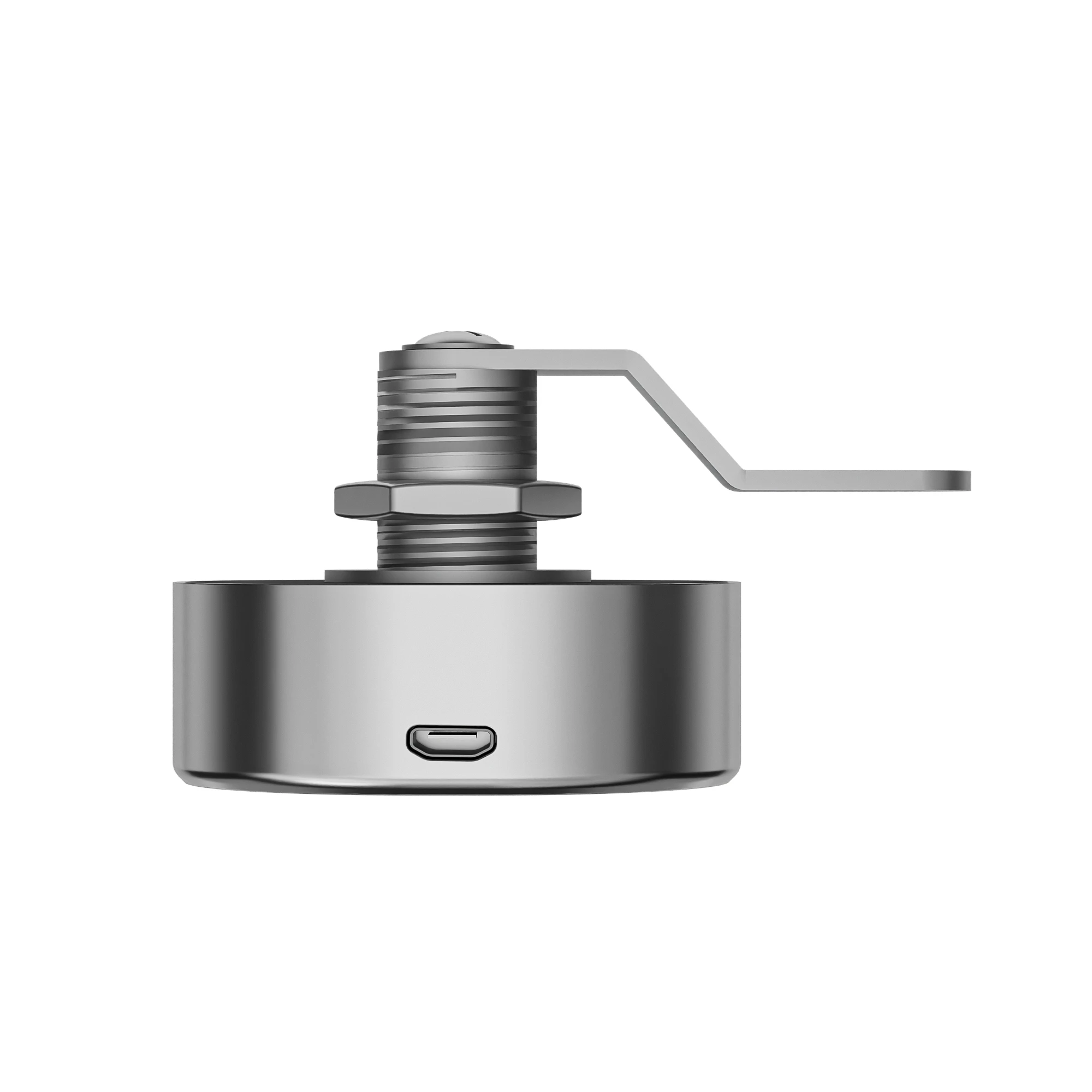

- USB Port: Emergency use only (no charging)
- Unlock Window: Rotate within 3 seconds after verification
Instruction manual and certificate attachments
9-grid password lock_manual_20260323_web
