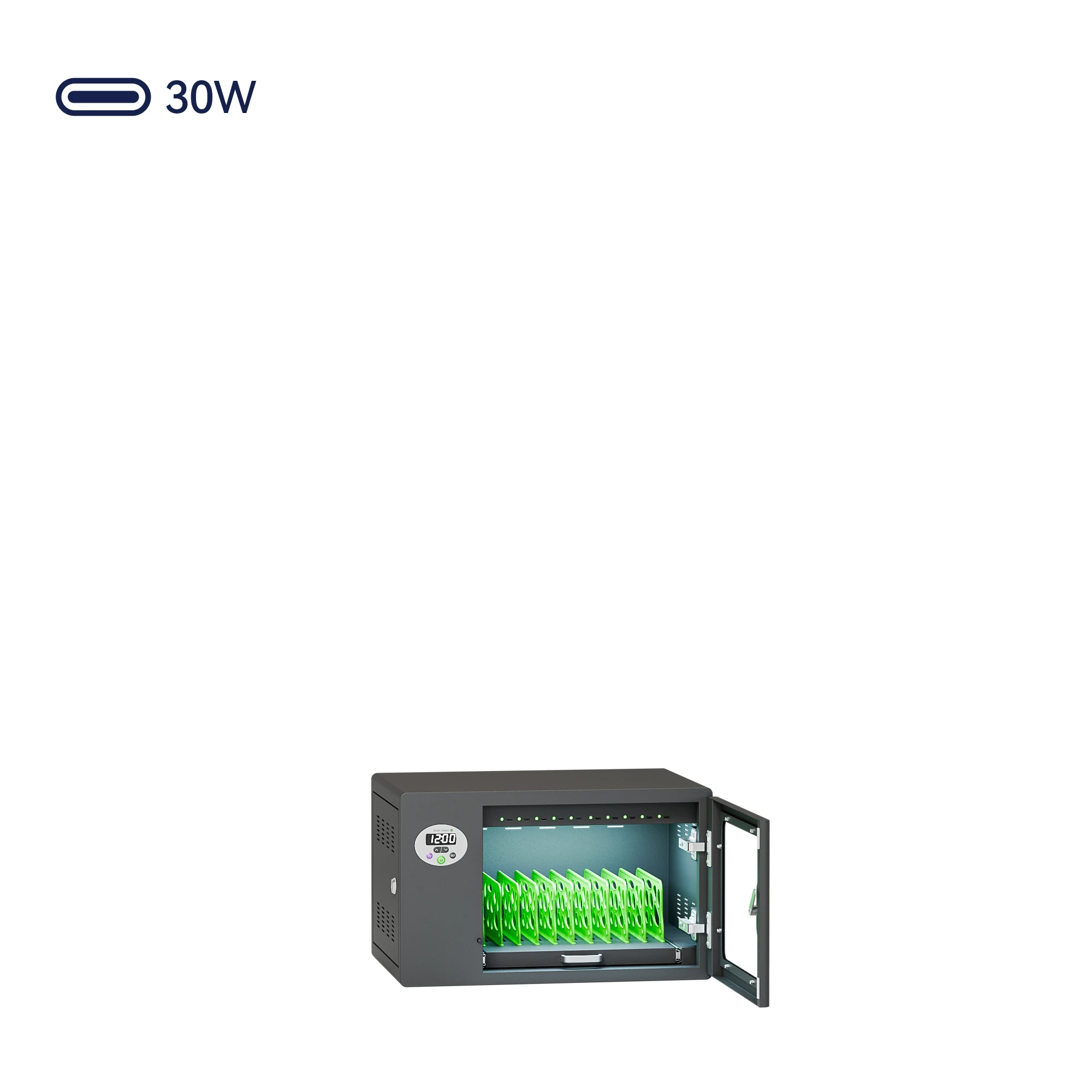

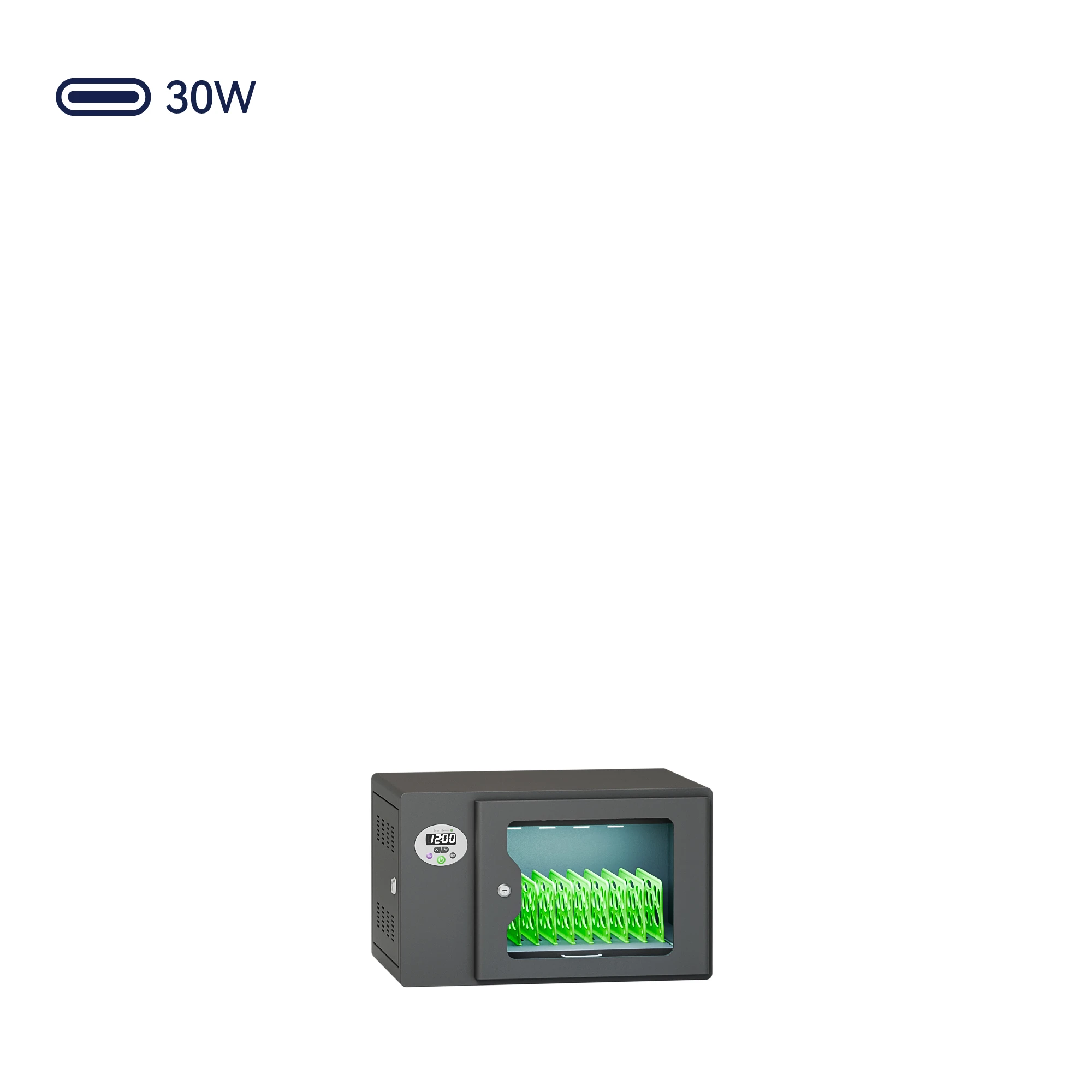

QP-R10PD-30W Type-C Smart Charging Cabinet for Tablets & Phones
Simple Description:
- 10 independent Type‑C output ports, max 30W per port, full‑speed fast charging at full load
- Compatible with mobile phones and tablets
- Efficient UV‑C disinfection, disinfection light auto‑off when door opens
- Intelligent timed charging prevents overcharging and extends battery life
- Built‑in 5‑layer circuit protection: overcurrent, overvoltage, grounding, overtemperature, overload
- Independent circuit design, single port failure does not affect the whole unit
- Smart temperature control at 45°C, fan auto‑start for stable long‑term operation
- Equipped with security lock + lockable silent casters, easy to move and anti‑theft
- Clear LED indicator for charging status
- Support child lock function
Product Details
Product Description
Fast Charging & Port Design
- Equipped with 10 independent Type‑C PD fast charging ports, stable 30W output per port for full‑speed charging of phones and tablets
- Independent circuit architecture, no power sharing, no speed reduction, all 10 devices charge at full power simultaneously
- Each port has an independent LED indicator, clearly showing Charging, Fast Charging, Fully Charged/Standby
UV‑C Disinfection Function
- Built‑in UV‑C disinfection lamp, supports one‑click timed disinfection to effectively eliminate bacteria on device surfaces
- Disinfection lamp turns off immediately when the cabinet door is opened to avoid direct UV exposure
- Meets hygiene requirements for shared devices and reduces cross‑contamination risks
Smart Timing & Control Functions
- Supports customizable charging time with countdown auto power‑off
- Equipped with smart control panel including Power, UV, Set, Up/Down buttons for easy operation
- Supports local time setting: long press Set to adjust, confirm with Set after adjustment
- Built‑in child lock to prevent accidental operation by children
Comprehensive Circuit Safety Protection
- Overcurrent protection: auto cut‑off when current is abnormal to avoid device and circuit damage
- Overvoltage protection: activates immediately when voltage exceeds limits for stable output
- Grounding protection: mandatory grounding design to prevent electric leakage and shock
- Overtemperature protection: auto protection when internal temperature rises abnormally
- Overload protection: auto power‑off under excessive load to safeguard the cabinet and charged devices
- Independent circuit loop: single port failure only affects that port, all other ports work normally
Smart Temperature Control & Cooling System
- Built‑in temperature‑controlled cooling fan that auto‑starts when cabinet temperature exceeds 45°C
- Quickly lowers cabinet temperature for stable long‑hour charging
- Reduces high‑temperature aging and extends service life
Structure & Usability Design
- Equipped with security lock to prevent loss or unauthorized removal during charging and storage
- Bottom heavy‑duty silent casters with locking function for free movement or fixed placement
- Built‑in push‑pull handle for easy transport and movement
- Neat internal space compatible with various sizes of phones and tablets for organized storage
Product Specifications
| Model | QP-R10PD-30W |
| Charging Capacity | 10 devices |
| Input Voltage | 220V/47~63Hz |
| Output Per Port | 30W Type-C |
| Rated Power | 348W |
| Product Dimensions | 540×390×330mm |
| Package Dimensions | 610×470×410mm |
| Net Weight | 15kg |
| Gross Weight | 19kg |
| Circuit Protection | Overcurrent, Overvoltage, Grounding, Overtemperature, Overload Protection |
Package Contents
- Charging Cabinet Main Unit x 1
- AC Power Cord x 1
- USB Charging Cables x 1 Set
- User Manual x 1
Instruction manual and certificate attachments
9-grid password lock_manual_20260323_web
