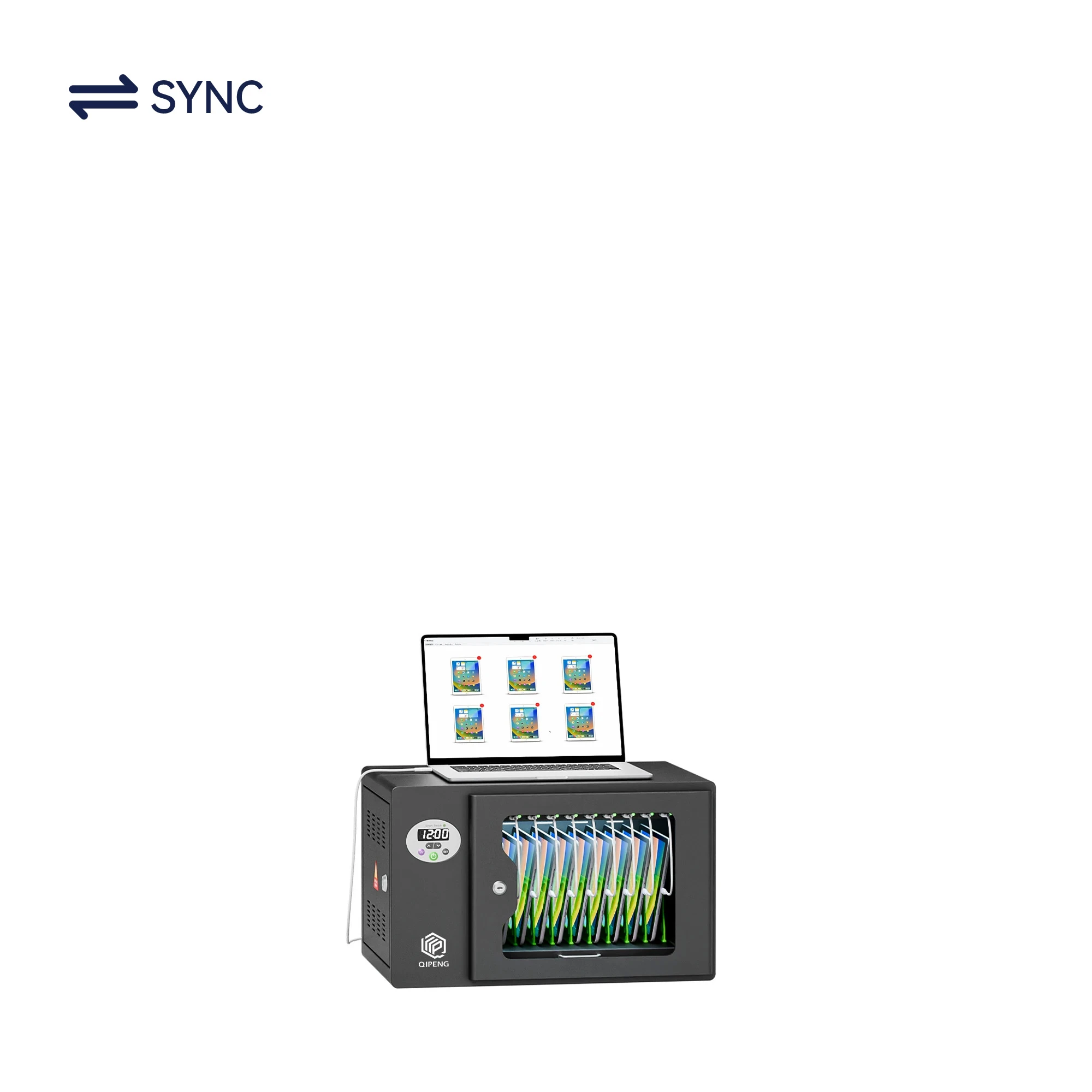

QP-R10SYNC Sync Charging Cabinet
Simple Description:
- 10-port centralized charging, stable 5V/2.4A output per port, compatible with mobile phones and tablets
- Supports data sync for efficient batch device deployment and management
- UV-C disinfection with 5-minute quick sterilization for clean and hygienic use
- Intelligent timed charging with auto power-off to protect battery lifespan
- Five-fold circuit protection: over-current, over-voltage, grounding, over-temperature, overload
- Leakage protection and mandatory grounding for safer operation
- 45°C auto cooling fan, prevents overheating during long-time use
- Smart control panel with child lock to avoid accidental operation
- Silent lockable casters for easy movement and stable placement
Product Details
Product Description
1. Charging Performance & Capacity
- Designed for centralized charging of 10 mobile devices, supporting up to 10 mobile phones or tablets simultaneously
- Stable 5V/2.4A output per port, steady charging speed without damaging device batteries
- Rated power 200W, sufficient power supply with no voltage drop during multi-device charging
- Clear LED indicators display real-time status: Charging / Charging Completed / Standby
2. Data Sync & Batch Management
- Supports USB data sync transmission, connectable to a computer for batch device management
- Capable of batch operations: software installation, uninstallation, system update, file transfer and data reset
- Single connection for unified control, greatly improving device management efficiency
3. UV-C Disinfection Function
- Equipped with UV-C disinfection lamp, one-key 5-minute quick disinfection
- Effectively eliminates bacteria and reduces cross-infection for public device use
- Auto power-off when door opens to avoid UV exposure to human body
4. Smart Control Panel Functions
- Power switch for one-key start/stop of the whole unit power supply
- Timed charging (5/8 hours) with auto power-off for battery protection
- Child lock activated by long press, effectively preventing misoperation
- Adjustable time setting for more intelligent and user-friendly operation
5. Multiple Safety Circuit Protections
- Over-current protection: auto cut-off when current is abnormal
- Over-voltage protection: auto voltage stabilization when voltage is unstable
- Grounding protection: mandatory grounding to prevent electric leakage and shock
- Over-temperature protection: auto protection when internal temperature is too high
- Overload protection: auto power-off when load exceeds the limit
- Leakage protective switch for enhanced electrical safety
6. Intelligent Temperature Control Cooling System
- Built-in auto cooling fan
- Automatically activates when internal temperature exceeds 45°C
- Auto stops when temperature drops, energy-saving and silent
- Effectively prevents device overheating, battery aging and circuit damage
7. Structural Design & Usability
- Equipped with push-pull handle for easier handling and movement
- Fitted with silent load-bearing lockable casters for stable placement
- Built-in cabinet safety lock to prevent device loss and unauthorized access
- Internal removable dividers for flexible adaptation to different device sizes
Product Specifications
| Model | QP-R10SYNC |
| Charging Capacity | 10 devices |
| Layout | 1×10 |
| Port Type | USB |
| Input Voltage | 220V/110V |
| Output | 5V/2.4A |
| Rated Power | 200W |
| Slot Size | 310×27.5×212mm |
| Product Size | 540×390×330mm |
| Package Size | 610×470×410mm |
| Net Weight | 15kg |
| Gross Weight | 19kg |
| Wheel Size | / |
| Circuit Protection | Over-current, Over-voltage, Grounding, Over-temperature, Overload, Leakage Protection |
| Cooling System | Auto cooling fan at 45°C |
| Disinfection | UV-C 5-minute timer, auto shut-off when door opens |
| Control System | Smart panel, timed charging, child lock, time setting |
| Structure | Safety lock, removable dividers |
| Compatible Devices | Mobile phones, tablets and other mobile devices |
Package Contents
- AC Power Cord x 1
- USB Charging Cables x 10
- User Manual x 1
